Doohbox - new version

Ref. selon options

Outdoor enclosure for screens - 30'' up to 75''

More details

cable management Anti-theft

Consult us

Contact us
a question?
+33 472 469 106

Description

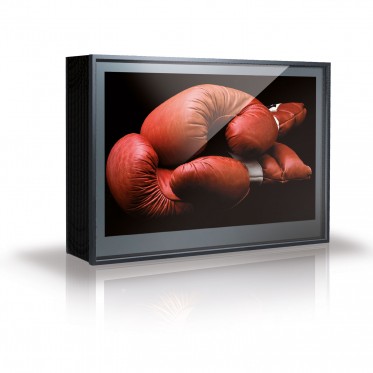

Digital signage ourdoor enclosure, available in portrait or landscape mode. With 5 different sizes, it is adapted for high brightness screens from 30'' to 75''.

  • 5 sizes available: 30-37 inches/ 40-48 inches/ 48-55 inches/ 58-65 inches / 70-75 inches
  • Refined design close to the screen
  • 6mm anti-vandalism laminated glass
  • Security locks
  • Certified protection IP54 : climate, vandalism, dust
  • Weatherproof enclosure: IP54 certified
  • Air filtration for a protection in all kind of environments
  • Optimized ventilation for high brightness screens
  • Gas stout to open the front door (maintenance: only one person)
  • Convenient screen mount with easy access to the back (time saving during installation)
  • Aluminium black front cover, steel body (colour RAL 9005)
  • Mask system to reveal only the image



Options:

  • Heating with temperature control by thermostat
  • Anti reflective laminated glass
  • Stainless steel box (painted RAL 9005)
  • Space to install a player (in option) to display your content
  • Floor stand bolted to floor for a totem like installation (centre of screen : approx. 160cm)
  • Tilted wall mount 22° (Landscape)
  • Ceiling mount

Display size 30''-37'' 40''-47'' 48''-55'' 58''-65'' 70''-75''
Landscape dimensions (mm)  1075x722x260   1289x813x270   1454x919x270   1739x1098x270  1943x1165x270
Portrait dimensions (mm)  722x1075x260  803x1299x270  909x1464x270  1088x1749x270 1155x1953x270
Depth of wall fixing (mm) - 50 50 50 50
Weight (kg)* 80 kg 105 kg 120 kg 150 kg 170 kg
*Approximate weight, it may vary depending on the options

Data sheet

Family DOOHBOX
Material Steel - Aluminium
Guarantee 1 year, 5 years
