TACTYS - Stand for touch screen

Ref. 220022

Stand for touch screen up to 32'' or 55'' - Free standing or bolted to the floor

More details

fixed cable management

917,00 € tax excl.

Consult us
For any request or order
+33 472 469 106

Description

TACTYS stand is a solution for touch screen in your digital signage projects on retail stores and in companies

Free standing or bolted to the floor

The base was conceived in a way to let you choose between a free standing or bolted to the floor column.

Ergonomics

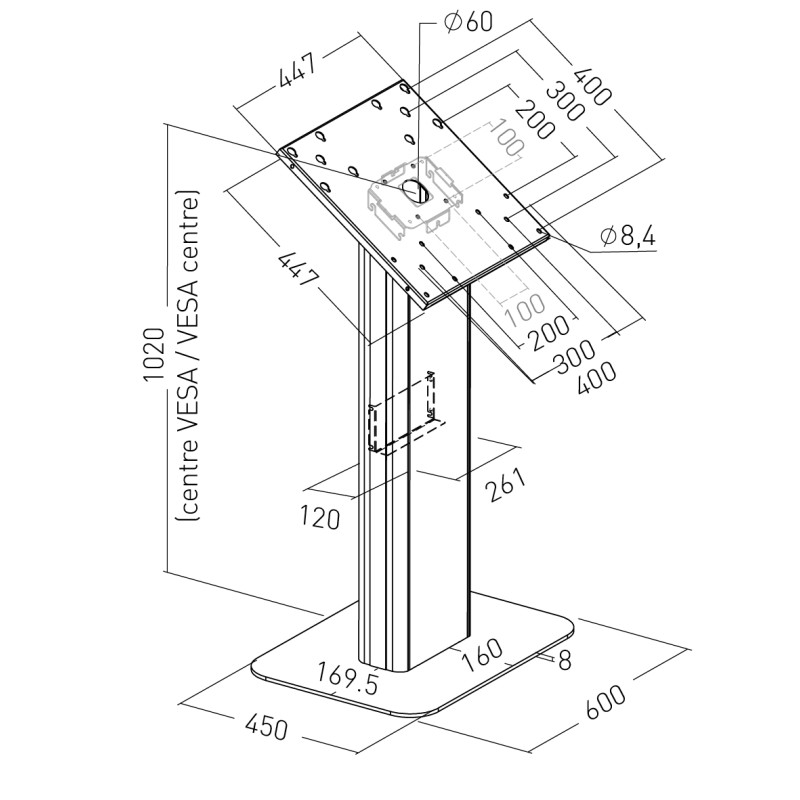

The height of the stand (VESA center at 1022mm) and the tilt of the mount guarantee an easy access to the display.

For touch screens

According to the size of the monitor, choose TACTYS S or TACTYS M.

TACTYS S
(ref. 220022)

TACTYS M
(ref. 220032)

Touch screen size
Up to 32''
40'' - 55'' (depending on installation mode)
VESA
50>100
200, 300, 400, 200x400, 400x200
Max. load (en kg)
Freestanding / bolted
20 / 70
25 / 70
Weight (en kg)
28
34

Don't hesitate to contact us for any request.

Data sheet

Mobility Fixed
VESA 100x100, 75x75, 50x50, 200x200, 200x400, 400x200, 400x400
Max load Depending on model and installation: 20, 25 or 70kg
Net weight 25kg (220022) ; 31kg (220032)
Material Steel - Aluminium
Guarantee 10 years
